The Earth (climate) system
Week
GEOS 3410
🪑
Week Schedule
Tuesday
- Systems
- The Earth system (science)
- Cycles
Thursday
- Cycles, cont.
- Feedbacks
Outside of class
- Complete/self-grade quantitative skills packet & meet with me, by Sept 12
- Lab 1 due 11:59 pm Friday, Sept. 12
System Science
A system (in the sense of the Earth system) is a suite of interconnected reservoirs that exchange "stuff" via connections
Systems are made up of reservoirs with fluxes between them...
The reservior and fluxes are any quantity — energy, matter, etc...
Residence Time
How long does a "particle" typically remain in the reservoir?
$$\tau = \frac{m}{f}$$
This is the mean residence time for a system with constant inflow/outflow, where $\tau$ is residence time, $m$ denotes the stock, and $f$ denotes the flux.
Residence Time
A pond is in equilibrium between precipitation and evaporation. It contains 104 kg of water. Water evaporates from the pond at a rate of 10 kg/day. How long does a typical water molecule reside in the pond?
- 10 days
- 100 days
- 103 days
- 104 days
Fluxes: transfer of energy or mass
Fluxes: transfer of energy or mass
Three mechanisms
- Radiation (typically EM = light)
- Advection / convection
- Diffusion (mass) / conduction (energy)
Diffusion / Conduction
Random motion of particles/energy down a gradient (high→low)
What happens when we increase the flux in (or decrease the flux out)?
↑ The reservoir fills ↑
What happens when we decrease the flux in (or increase the flux out)?
↓ The reservoir empties ↓
...until the reservoir reaches equilibrium with the altered fluxes.
Equilibrium & state changes
Equilibrium does not mean static
Animation credit: Keenan Crane
Equilibrium vs. non-equilibrium
State transitions
Thresholds and tipping points
System responses in time
State transitions in time

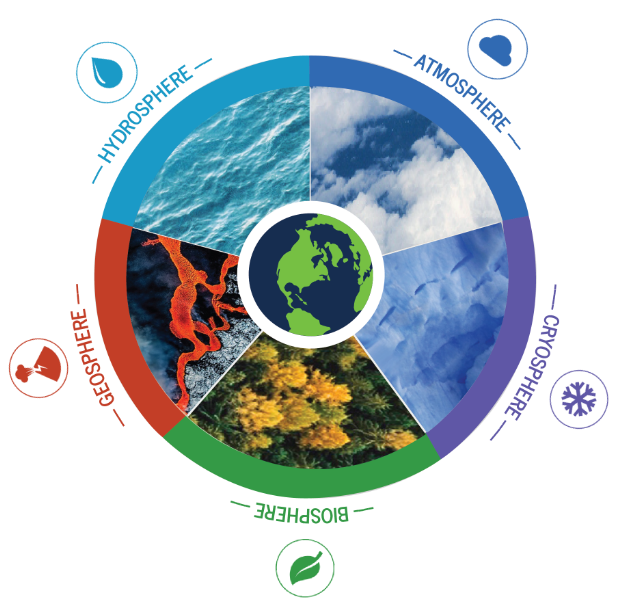

🌍 Subsystems of the Earth System 🌍
- Lithosphere (geosphere)
- Hydrosphere
- Cryosphere
- Biosphere
- Atmosphere
🌋 Lithosphere / Geosphere 🌋
🌋 Lithosphere / Geosphere 🌋
Plate tectonics are fundamental to Earth system processes
Footnote: Core → magnetosphere
Protects atmosphere from solar wind!
💧 Hydrosphere 💧
💧 Hydrosphere 💧
Oceans and climate
- Strongly coupled with atmosphere sub-system
- Water has high heat capacity
- Ocean currents (both deep and shallow) transfer heat globally
🧊 Cryosphere 🧊
(cryosphere ⊂ hydrosphere)All the ice...
ALL the ice...
ALL THE ICE...
Snow cover January 2024
Ice & climate... lots more to come in later weeks!
🦠 Biosphere 🦠
Redox chemistry
Organic & Inorganic carbon
Organic
Carbon atoms bonded directly to C and H atoms, i.e. hydrocarbons.
(sugars, fats, petroleum)
Inorganic
Carbon atoms not bonded to C or H, often bonded to oxygen.
Autotrophs
Primary producers
Produce their own food by converting abiotic energy into organic compounds.
Heterotrophs
Get nutrition from organic carbon of other organisms.
Biology fundamentals (for Earth scientists)
Life is made up of...
| oxygen | ~63% |
|---|---|
| carbon | ~18% |
| hydrogen | ~10% |
| nitrogen | ~2% |
| calcium | ~2% |
| everything else | ~5% |
Life is limited by two things: nutrients, energy
- life gets energy from organic C (reduced) by oxidizing it (into CO2)
- autotrophs make org-C by harnessing chemical gradients (photosynthesis, chemosynthesis)
Major life-mediated carbon transformations
Chemo-/Photosynthesis
CO2 + H2O + energy→ CH2O + O2
formaldehyde
Respiration
C6H12O6 + 6 O2→ 6 CO2 + 6 H2O + energy
Primary Production
- Where is production greatest? Least?
- Is this surprising?
🌪 Atmosphere 🌪
Hydrostatic equilibrium
Outward force of atmospheric pressure balances the inward force of gravity.
Any stable atmosphere is in hydrostatic equilibrium.
Physical structure of atmosphere
\[\begin{aligned}
\rho(z) &= \rho_o e^{-z/H} & P(z) &= P_o e^{-z/H}
\end{aligned}\]
$H$ is the "scale height"
Table 1.5, Stull 2018
Atmospheric layers
| Troposphere | convective, heated at Earth's surface — clouds, wind, weather. |
|---|---|
| Stratosphere | stratified, 90% of ozone |
| Mesosphere | diminishing ozone → cooling |
| Thermosphere | absorbs very short UV wavelengths, ionized atoms (overlaps ionosphere) |
Atmospheric chemistry
Wikipedia: Atmosphere of Earth, Atmospheric Chemistry
Atmospheric chemistry
⚡light⚡ + O 2 → 2 OOzone (O3)
O2 + O → O3O3 + O → 2 O2
O3 + O3 → 3 O2
Methane (CH4)
A trace greenhouse gas, until…Complex reaction chains among H2O, CH4, & O → CO2 + H2O
CO2 is very stable in the atmosphere
Earth System Science
Foundations

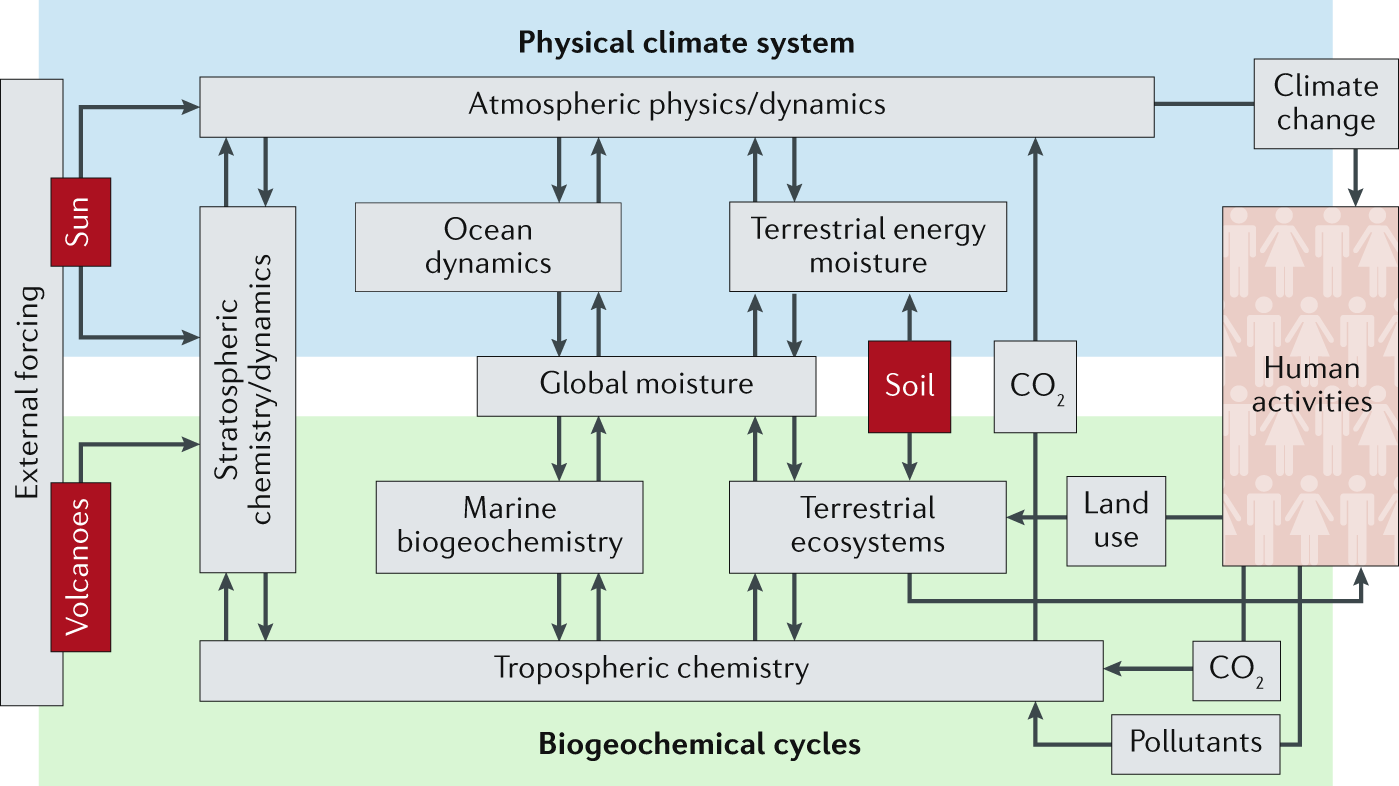

Complex interconnections
Foundations
The Amsterdam Declaration (2001)
- The Earth System behaves as a single, self-regulating system
- Global change is real and happening now
- Global change operates through complex, cascading effects characterized by critical thresholds and abrupt changes
- The Earth system is currently in a no analogue state

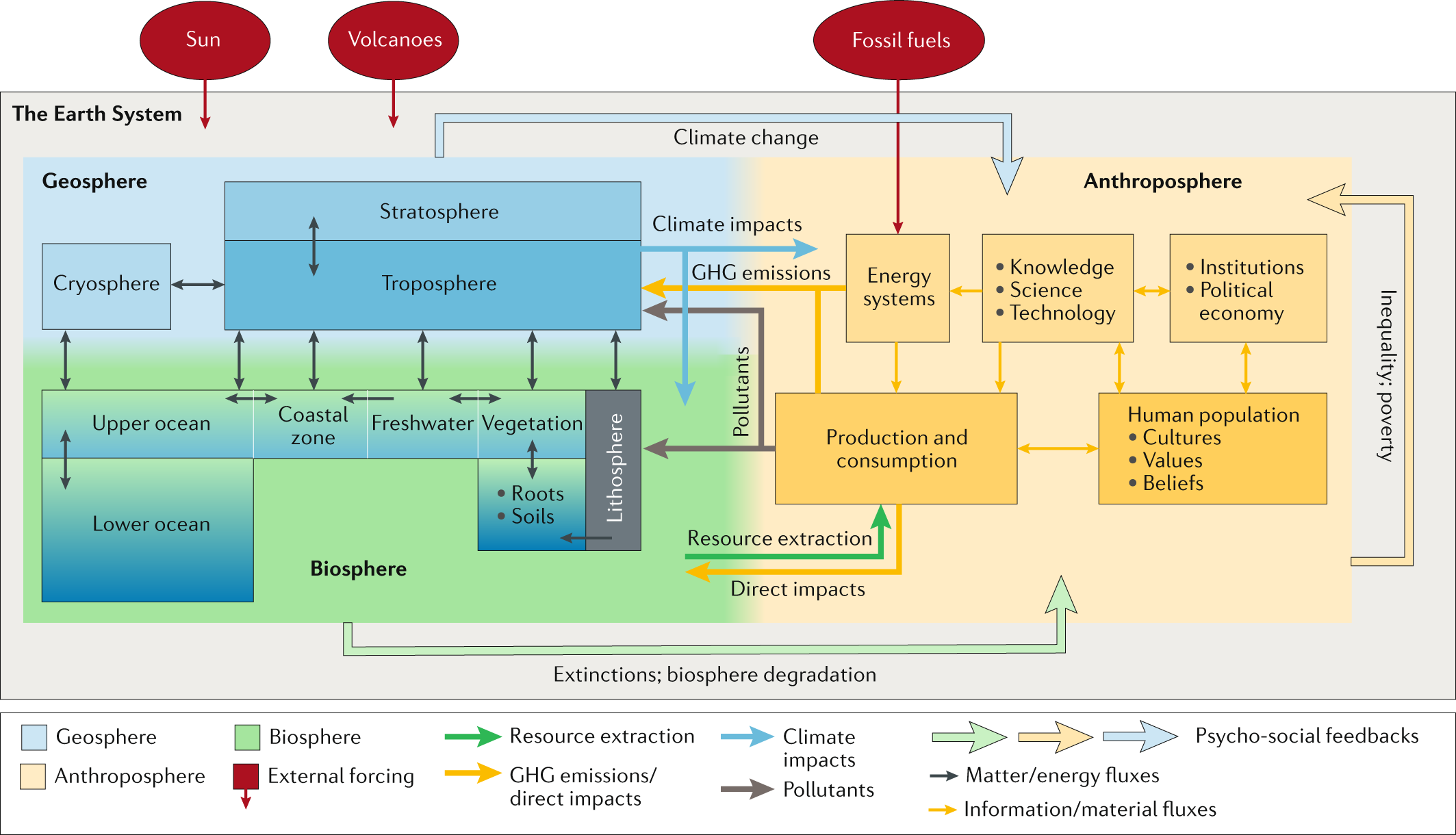

An updated Earth system model

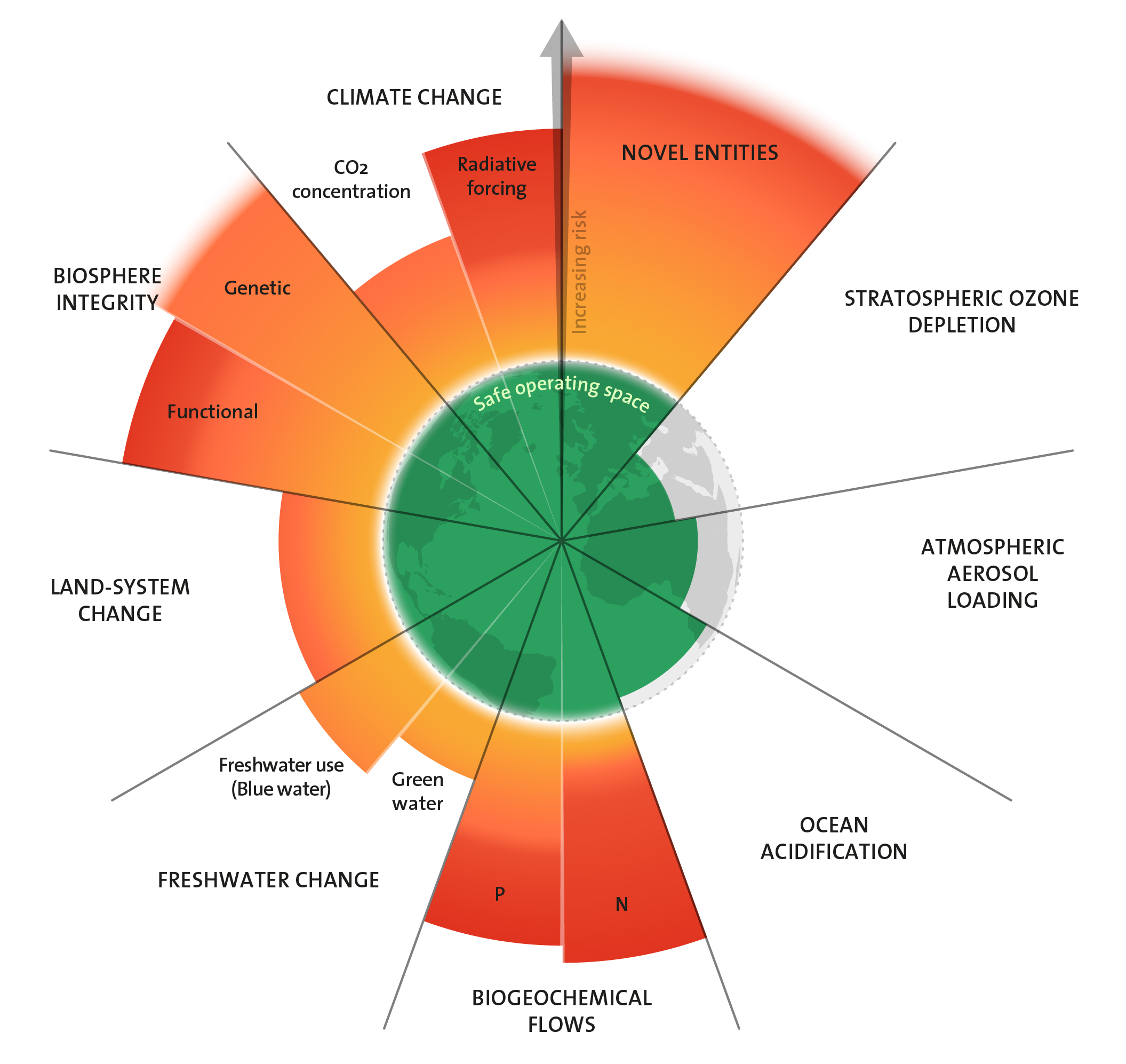

Planetary boundaries framework
The Anthropocene epoch…
… was rejected by International Commission on Stratigraphy (ICS) and the Subcommission on Quaternary Stratigraphy (SCS). Not a strict enough definition, perhaps an event rather than an epoch.
A humanist criticism of the Anthropocene
The dominant presentation of the Anthropocene ignores the role of systems, such as colonialism, capitalism and patriarchy and erases the racialised history of extractive colonialism that has given rise to this form of globalism.
Two critical research challenges facing Earth system science
- How stable and resilient is the Earth system?
- How can we better understand the dynamics of human societies?
Two very important molecules
water — H2O
carbon dioxide — CO2
Where's Water?
Aqueous (water) chemistry
water = proton + hydroxide
$$ \text{H}_2\text{O} ~\longleftrightarrow ~ \text{H}^+ + \text{OH}^- $$| Excess of H+ | acidic | pH < 7 |
| Excess of OH− | basic | pH > 7 |
Aqueous carbonate system
\[\begin{aligned}
\text{H}_2\text{O}_{(l)} + \text{CO}~_{2~(g)}~&\longleftrightarrow~ \text{H}_2\text{O}_{(l)} + \text{CO}~_{2~(aq)}
\\\\
\text{H}_2\text{O} + \text{CO}~_{2~(aq)} ~&\longleftrightarrow~ \text{H}_2\text{CO}_3
\end{aligned}\]
Aqueous carbonate system
\[\begin{aligned} \text{H}_2\text{O} + \text{CO}~_{2~(aq)} ~&\longleftrightarrow~ \text{H}_2\text{CO}_3 \\\\ \text{H}_2\text{CO}_3 ~&\longleftrightarrow~ \text{H}^{+} + \text{H}\text{CO}_3^- \\\\ \text{H}^{+} + \text{H}\text{CO}_3^- ~&\longleftrightarrow~ 2~\text{H}^{+} + \text{CO}_3^{2-} \\\\ (\text{H}_2\text{O} ~ &\longleftrightarrow ~ \text{H}^+ + \text{OH}^-) \end{aligned}\]$$\text{Ca}^{2+} + \text{CO}_3^{2-} \longrightarrow \text{CaCO}_3$$
Aqueous carbonate system
Aqueous carbonate system
- ↑ pH (↓ H+)… eqn. moves →
- ↓ pH (↑ H+)… eqn. moves ←
- ↑CO2 → ↑ H+ → ↓ pH
Biogeochemical Cycles
Water Cycle
Carbon Cycle
Marine carbon: the biological pump
Recycling of POC and DOC through autotrophs (phytoplankton) and heterotrophs in seawater column.
| P | Particulate |
|---|---|
| D | Dissolved |
| OC | Organic Carbon |
| IC | Inorganic Carbon |
Carbon cycle on human timescales
Inorganic carbon (carbonate-silicate) cycle

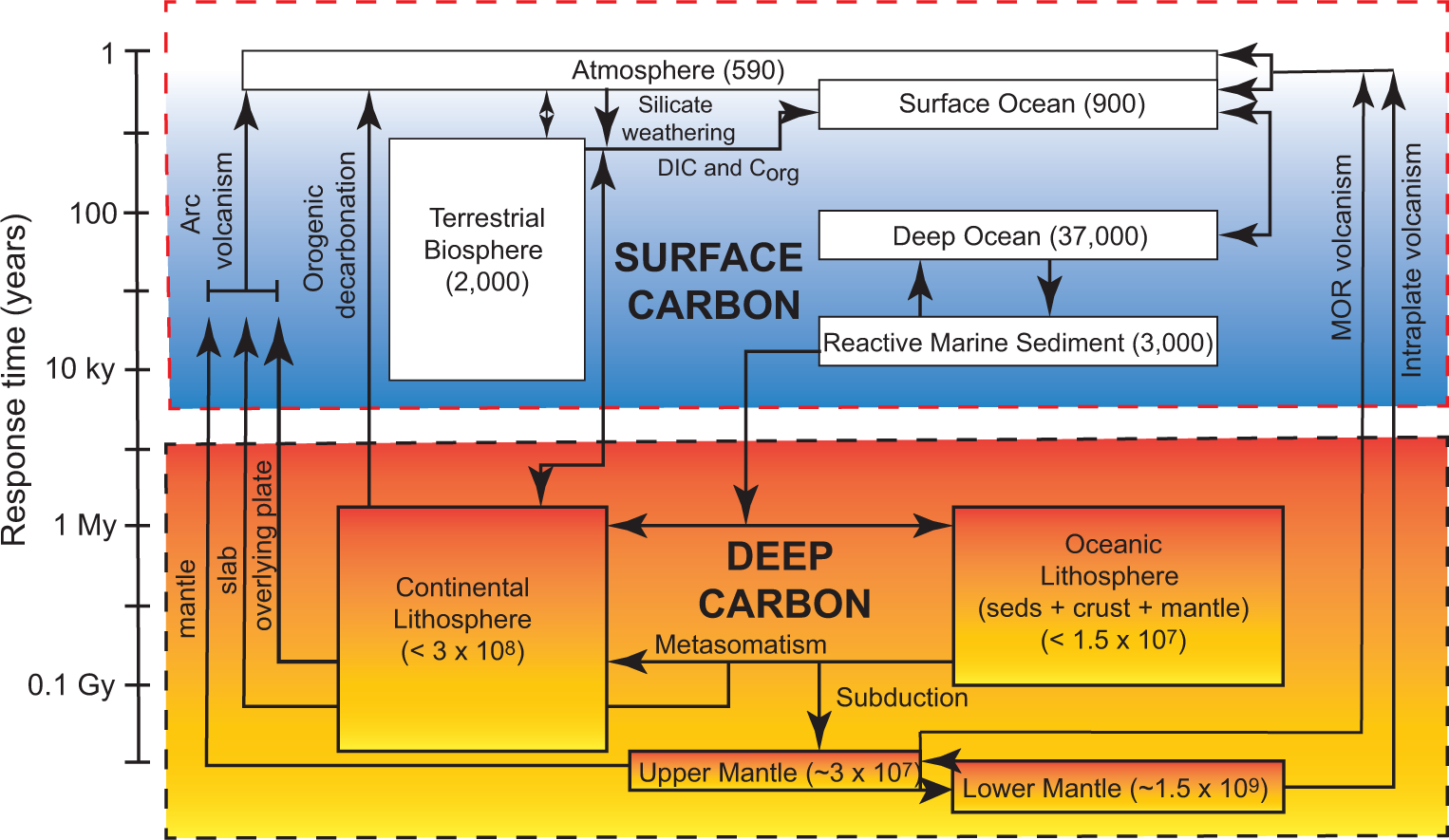

The terrestrial carbon system
C transfer between surface and interior (lots of C!) on geologic timescales.
Nitrogen cycle
Chemistry
Transition to oxidized states by nitrification and to reduced states by denitrification.
(Anammox = Anaerobic ammonia oxidation)
Nitrogen cycle
Marine
Terrestrial
Sulfur cycle
Sulfur Cycle
And short-term climate responses
Sulfur cycle

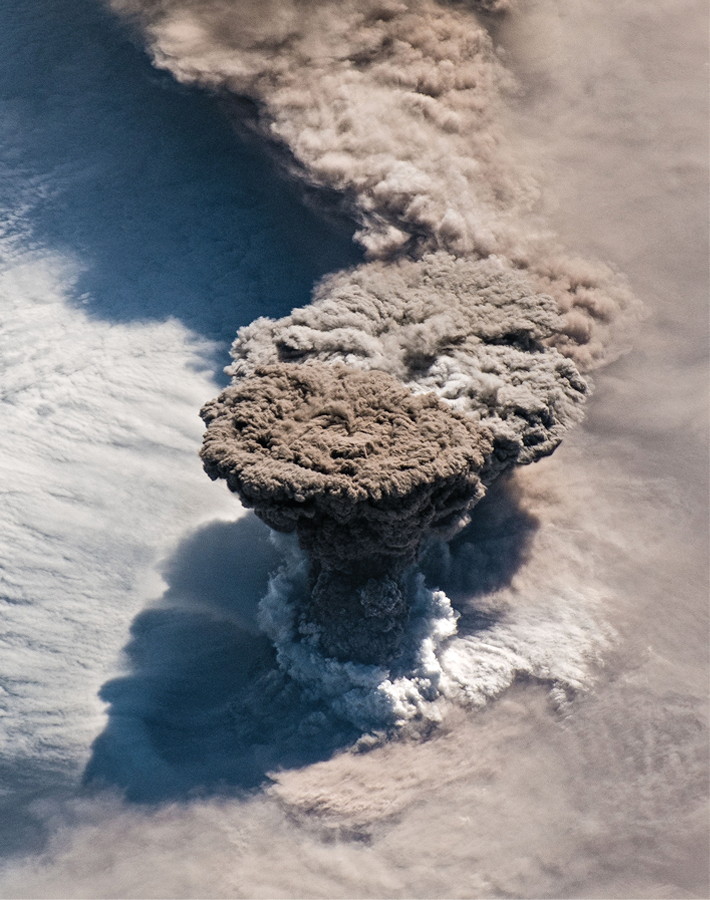

Sulfur in the stratosphere
Stratospheric eruptions inject sulfur into atmosphere: $$\text{SO}_2 ~\longrightarrow~ \text{H}_2\text{SO}_4$$ Sulfuric acid aerosols increase reflection of light above troposphere and cool the planet (for a few years)Image: USGS
Feedbacks
System Interactions
Causal diagrams
| Positive forcing | $$ x \xrightarrow{+} y$$ | As x ↑, y ↑ (As x ↓, y ↓) |
|---|---|---|
| Negative forcing | $$ x \xrightarrow{-} y$$ | As x ↑, y ↓ (As x ↓, y ↑) |
Albedo (α)
The fraction of incident radiation (light) that an object reflects.
| α = 1 | Reflects all incident light |
|---|---|
| α =0 | Absorbs all incident light |
Ice-albedo feedback
Permafrost-warming feedback
Silicate Weathering Feedback
Lab this afternoon in MMS 273
Lab 1 due next Friday by 11:59pmNext Week ()
- Readings: Syllabus / Canvas
- Complete/grade quantitative skills packet & meet with me, by Sept 12
- Coming up: ☀️ Astrophysics of climate ☀️
